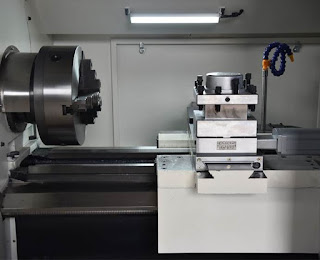

Big Bore CNC lathe CDK6150 customized by HAISHU Machinery is a kind of widely used horizontal CNC pipe thread lathe equipped with a powerful CNC system, a four-station electric turret, or a horizontal six-station turret. Our Metal Cutting CNC Lathe CDK6150 provides affordable flexibility for long pipe cutting, turning functions. This kind of CNC Lathe CDK6150 provides stability, rigidity, and accuracy for a variety of applications.
The Peru customer has already bought a CNC lathe for his metal workpieces, this time he needed a special CNC Lathe for his pipe. But the tube is longer, and he is worried that the single chuck will swing more severely. After our engineer understood his needs, immediately stated that we could customize a double-check CNC lathe for him. He sent me his tube diameter, we provided a detailed quotation of the customized double-chuck big-bore CNC lathe which was suitable for him. He was very grateful that it is the perfect CNC machine he needs.
After the Big Bore CNC lathe CDK6150 completed, we sent him the CNC pipe thread lathe CDK6150 to operate the video. The customer was very satisfied.
Big Bore CNC Lathe CDK6150 Specifications
| project | Unit | CDK6150 （110） | CDK6150 （140） | CDK6150 （160） | CDK6150 （170） | CDK6160 （200） |
| system | Standard configuration: GSK980TC3 Optional: FANUC Oi TF; FANUC Oi Td; SIEMENS 808D; KND | |||||
| The maximum turning diameter of the bed | Mm | 500 | 600 | |||
| Maximum turning diameter on the tool post | Mm | 270 | 370 | |||
| Maximum center distance | Mm | 1000 | ||||
| Bed width | Mm | 400 | ||||
| Spindle bore | Mm | 110 | 140 | 160 | 170 | 200 |
| main motor power | kw | 7.5 | ||||
| Spindle speed change form | Frequency conversion stepless speed regulation | |||||
| Spindle speed range | r/min | 150-1000 | 70-800 | 70-700 | 70-700 | 70-600 |
| X/Z axis maximum stroke | Mm | X：310 Z：800 | ||||
| X/Z axis fast-moving speed | Mm/min | 4000 | ||||
| Chuck | K11-320Three-jaw chuck | K11-380Three-jaw chuck | K11-400Three-jaw chuck | K11-400Three-jaw chuck | K11-500Three-jaw chuck | |
| positioning accuracy | Mm | 0.02 | ||||
| Repeatability | Mm | 0.01 | ||||
| Machine size | Mm | 2700×1450×1730 | ||||
| Machine weight | T | 2.5 | 2.7 | 2.9 | 3.0 | 3.2 |
Big Bore CNC Lathe CDK6150 Configurations
- CNC system: GSK980TC3
- K11-320Three-jaw chuck
- Manual tailstock
- Vertical four-station electric turret
- Automatic lubrication system
- Turning the cooling system
