Slant Bed CNC Lathe Machine CK30A Export To Peru

Slant bed CNC lathe machine CK30A is the specially engineered CNC lathe with slant bed for small and medium-sized metal parts by Taian Haishu Machinery Co., Ltd. This slant bed CNC lathe machine can perform such turning and rotary tool operation as milling and drilling. In other words, the slant bed CNC lathe  CK30A can handle the turning, milling and drilling of complex workpieces in one operation. The slant bed CNC lathe CK30A is suitable for high precision and consistency requirements for small and medium-sized discs and short shaft components.

Our Peruvian customer needed a medium-sized multi-function slant bed CNC lathe for turning and milling. He sent me the workpiece drawings directly, and we chose the CNC 300D for the inclined bed CNC lathe. After confirming the detailed quotation of the slant bed CNC machine, he asked for a custom configuration of the appearance. We sent him the appearance of a slant bed CNC lathe.

After the slant bed CNC lathe machine was completed, he told me there was no need to check. So I sent him a slant bed CNC lathe operation video and finished the workpiece. He was very satisfied and paid the balance immediately

Slant Bed CNC Lathe Machine CK30A Standard Configuration

• CNC system – GSK980
• Pneumatic collet
• Milling powerhead
• Tool Rack
• Cooling system
• Manual full protection door

Slant Bed CNC Lathe Machine CK30A Optional configuration

• CNC system – KND, SYNTEC, SIEMENS, FANUC
• Chuck: manual, pneumatic, hydraulic
• Chip Conveyors

Slant Bed CNC Lathe Machine CK30A Features

• 45º inclined bed, double linear guide rail, high accuracy, good dimensional stability.
• The overall structure of integrated design and manufacturing of the bed foot, the Slant Bed CNC Lathe Machine CK30Abed is made of resin sand casting, aging, ultra frequency hardened rails for precision grinding, good precision retention.
• The overall bed foot features high stability and rigidity, machine rigidity, fully enclosed protective structure, the Slant Bed CNC Lathe machine in water, oil, dust and safety performance is much better than similar products.
• Independent spindle structure of Slant Bed CNC Lathe Machine CK30Awhile matching precision class P4 spindle bearings, spindle speed, thermal deformation.
• X-axis maximum stroke is up to 280 mm, the knife row provides high work efficiency.

About HAISHU Machinery

As the professional CNC machine designer and manufacturer, Taian Haishu Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in super CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory.  More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative products include CNC lathe, CNC milling machine, CNC machining center, Slant Bed CNC Lathe Machine, CNC tool grinding machine, CNC pipe threading lathe, CNC wood lathe, stone CNC machine, CNC root canal file grinder and custom CNC equipment for special requirements.

HAISHU Machinery is not only manufacturing best quality Slant Bed CNC Lathe Machine but also providing custom product design, fabrication and after sale services. Welcome, contact us for detailed information.

CNC Lathe Mill Drill Machine CNC300D Was Export To Malaysia

CNC Lathe Mill Drill Machine CNC300D designed and manufactured by HAISHU Machinery is capable of both rotating-workpiece operations like turning and rotating-tool operations such as milling and drilling. That is to say, The CNC Lathe Mill Drill Machine CNC300D can process turning, milling and drilling of complex workpieces in one machine. This CNC Lathe Mill Drill Machine CNC300D is suitable for high accuracy and conformance requirements for small and medium-size disk and short axle parts.

Mr. Leekin is from Malaysia. He has one metal parts machining plant. He wanted to buy one automatic metal CNC lathe mill drill machine from China. That is to say, he needs one CNC lathe with the Multi-functions. He found our company on the internet. And he sent to me one inquiry to know more about our machines. I told him that we need the workpiece drawing to check which model of this multi-functional CNC lathe is most suitable. At first, he sent to me the workpiece pictures, but because the workpiece is complex need turning milling and drilling, can’t confirm the Multi-function machine only depending on the workpiece pictures. Later, he sent to me the workpiece drawings. Our engineer checked his drawings and thought that the model CNC300D CNC lathe mill drill machine is the most suitable for his workpiece. So I sent to him the CNC lathe mill drill machine information, including the pictures, parameters, working video. Mr. Leekin studied all the information, he is one engineer too, so he can adjust the model CNC300D CNC lathe mill drill machine is suitable or not. At last, he thought that the CNC turning milling drilling machine CNC300D is the suitable machine for his workpiece. Then he required the slant bed lathe machine offer with GSK980 system. We gave him the discount. He was very happy. And then he signed the contract with HAISHU company.

When the CNC lathe is ready, I sent to Mr. Leekin the turning milling drilling machines’ pictures and working video, he checked all the information and said that CNC lathe machine was ok, and he would not come here for checking. Then he arranged the balance payment.

CNC Lathe Mill Drill Machine CNC300D Technical Parameters

No	Item	Specifications
1	Max turning diameter of the bed	300mm
2	Spindle Bore	41mm
3	Tool shank	20×20mm
4	Main motor power	3.7Kw
5	Machine Size	2030×1626×1730mm
6	Net weight	1500Kg

CNC Lathe Mill Drill Machine CNC300D Configuration

Standard Configuration

• CNC system – GSK980
• Pneumatic collet
• Milling powerhead
• Tool Rack
• Cooling system
• Manual full protection door

Optional configuration

• CNC system – KND, SYNTEC, SIEMENS, FANUC
• Chuck: manual, pneumatic, hydraulic
• Chip Conveyors

CNC Lathe Mill Drill Machine CNC300D Features

• The CNC Lathe Mill Drill Machine CNC300D has 45º inclined bed, double linear guide rail, high accuracy, good dimensional stability.
• The overall structure of the integrated design and manufacturing of the bed foot, the bed is made of resin sand casting, aging, ultra frequency hardened rails for precision grinding, good precision retention.
• The overall bed foot features high stability and rigidity, machine rigidity, fully enclosed protective structure, the CNC turning lathe in water, oil, dust and safety performance is much better than similar products.
• Independent spindle structure with matching precision class P4 spindle bearings, spindle speed, thermal deformation.
• X-axis maximum stroke is up to 280 mm, the knife row provides high work efficiency.

  About Haishu Machinery

  As the professional super CNC machine designer and manufacturer, Taian Haishu Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory.  More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative products include CNC lathes, CNC milling machine, CNC machining center, CNC turn-mill machine, CNC tool grinding machine, CNC pipe threading lathe, CNC wood lathe, stone CNC machine, CNC root canal file grinder and custom CNC equipment for special requirements.
  HAISHU Machinery is not only manufacturing best quality CNC machine products but also providing custom product design, fabrication and after sale services. Welcome, contact us for detailed information.

Small CNC Metal Lathe CK6432A Was Exported To IRAN

Small CNC metal lathe CK6432A is a widely used horizontal CNC lathe with powerful CNC system, four-station electric turret, automatic lubrication system and cooling system. The HAISHU small CNC metal lathe CK6432 is suitable for metal cutting, turning or drilling functions. This small CNC metal lathe provides stability, rigidity and precision for a variety of applications. All of our small CNC metal lathes can be custom designed and manufactured to your requirements.

Mr. Mrahugk is from Iran and he is our old customer. He is a reseller. He bought 30 CNC lathes from our company every year. This time he needed a small CNC metal lathe with a diameter of 360mm, a spindle diameter of 60mm and a machining length of 500mm. First of all, I recommend him to the CK6136A CNC metal lathe. But he hopes that CNC metal lathe is cheaper. So I recommended him the CK6432A small CNC metal lathe. This small CNC metal lathe parameter meets his requirements. The price of the CK6432A small metal CNC lathe is suitable. He checked all the information and showed the CNC lathe machine to his clients. They think that the CK6432A metal CNC lathe machine is no problem.

After 30 days, we completed the small metal CNC lathe CK6432A, then I sent Mr. Mrahugk a picture of the CNC lathe, worked on the video, and made some workpieces. He said that small CNC metal lathes are great. And arrange the balance payment. Then we arranged the delivery.

Small CNC Metal Lathe CK6432A Specifications

Item	Unit	Specifications
Max. rotation diameter over bed	mm	φ360
Spindle Nose	mm	A2-6
Spindle speed range	r/min	150-2500
Spindle Bore	mm	φ60
Main motor power	Kw	3.7
Arbor Section	mm	25×25
Machine Size（L×W×H）	mm	1740/2000×1210×1650
Net weight	Kg	1275/1450

Small CNC Metal Lathe CK6432A Features

• Free to choose Full protection or Semi-protection
• Big spindle bore (φ60mm),
• Large turning diameter (φ360mm),
• High spindle speed (2500rpm),
• casting bed foot
• Double triangle rail,
• High processing precision and stable processing quality;
• Mufti-coordinate linkage can be performed to process parts with complex shapes;
• When the CNC lathe parts are changed, generally only need to change the NC program, which can save production preparation time;
• The Small CNC Metal Lathe has high precision and rigidity and can choose favorable processing amount, and the productivity is high
• The degree of automation of the CNC lathe machine tool is high, which can reduce the labor intensity;

Small CNC Metal Lathe CK6432A Configurations

• Standard Configuration
• CNC system – KND
• Manual chuck
• Manual tailstock
• Vertical four-station electric turret
• Automatic lubrication system
• The cooling system for turning
• Full protection machine case

Small CNC metal lathe Optional configuration

• CNC system: GSK, Siemens, Fanuc, etc
• Main servo motor
• Hydraulic chuck (solid and hollow), pneumatic chuck, manual collect, pneumatic collect
• Hydraulic tailstock, pneumatic tailstock
• Automatic feeder
• Horizontal 6/8 turret station, tool row

About HAISHU Machinery

Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated to supplying automobile wheel production and repair solutions to worldwide customers. We have been always worked hard to become the leader in designing and manufacturing CNC lathes since 2001.   We have more than 30 talented experts and more than 12,000 square meters factory. Our innovative, high-quality products include wheel CNC machine, wheel repair machine, brake drum lathe and customized super CNC machine.

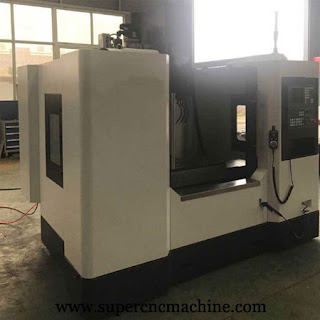

Vertical CNC Machining Center VMC650 Export To Peru

Vertical CNC machining center VMC650 is designed and engineered with vertical bed structure, X-Y-Z three-coordinate feed axis control, the spindle servo motor power drive. The vertical CNC machining center manufacturer VMC650 power is 5.5Kw, the maximum speed is 8000rpm. Due to the high quality Double nut pre-tightening C3 ball screw, the positioning accuracy is ±0.01mm; The optimal tool magazine is accurate and reliable tool change; The numerical control operating system has customer choice. This vertical CNC machining center tool can realize various discs, plates, shells, cams, molds, etc. The vertical CNC machining center VMC650 with complex parts is suitable for small and high-efficiency high-precision automatic machining. This vertical CNC machining center is widely used in teaching, aerospace, military and defense, automotive and motorcycle, construction machinery, refrigeration and petrochemical, and medium-sized parts in the field of rolling stock.

Vertical CNC Machining Center VMC650 parameter

No	Unit	specifications
1	x axis travel	650mm
2	y axis travel	400mm
3	z axis travels	500mm
4	spindle nose to table	70-570mm
5	workbench size	800×400mm
6	t-slot	16×3×80mm
7	workbench maximum load	500kg
8	spindle taper	BT40
9	spindle power	5.5kw
10	machine size	2600×2300×2500mm
11	machine weight	3600kg

Vertical CNC Machining Center VMC650 features

• High rigidity. Vertical CNC machining center VMC650 adopts bed type machining center structure. The CNC machining center consists of a base, a slide, a table, a column and a headstock. The main basic components are analyzed by finite element structure, with reasonable structure and high rigidity. All machine tool castings are treated with heat aging, and the precision has long-term stability.
•  CNC milling machine adopts high speed, high precision and high rigidity spindle unit. The vertical CNC machining center VMC650 spindle material is made of high performance alloy steel. Use high-speed precision bearings for the spindle and use high-speed grease. The spindle speed reaches 8000 rpm and the spindle radial runout is less than 0.008/300.
• The X, Y, Z direction feed uses the C3 grade double nut preloaded precision ball screw. The servo motor is directly connected to the lead screw through a high torque and low inertia inlet flexible coupling to ensure positioning accuracy and repeat positioning accuracy.

3-axis Vertical Machining Center VMC650 Power and Environmental Requirements

Power supply and environmental requirements

• 1.1 Power supply voltage: 380V ± 10%
• 1.2 power frequency: 50HZ ± 1%, three-phase
• 1.3 gas source: 6kg / cm2 after proper drying

Use environmental conditions

• 2.1 Relative humidity: ≤80%
• 2.2 Ambient temperature: 0 ° C -40 ° C
• 2.3 Air medium: non-corrosive medium
• 2.4 Light: adequate, well ventilated
• 2.5 CNC machine works stable for a long time under the above working conditions.

Installation site conditions

• 3.1 Not affected by external vibration.
• 3.2 Not affected by corrosive gases.
• 3.3 Avoid direct sunlight in the machining center.
• 3.4 Avoid direct contact with external winds, air and temperature to regulate hot and cold air.
• 3.5 Avoid setting up heat sources such as heating near the vertical machining center.
• 3.6 Reduce dust (avoid castings, welding, sheet metal workshops, etc.).
• 3.7 Avoid water leakage and water immersion.
• 3.8 Avoid electrical noise.
